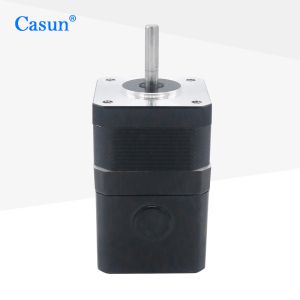

Nema 17 Colsed-loop Stepper Motor, 42*42*34mm.1.8 Degree 2 Phase, 300mN.m Holding Torque.

Top Manufacturer Supplier 42*33mm 1.8 Degree Closed-Loop Nema 17 Stepper Motors 300mN.M For Cnc Kit Electric Motor

The 42mm deceleration Colsed-loop stepper motor combines the characteristics of stepper motors, enabling precise positioning control and being suitable for applications that require high-precision positioning.

Features:

• Bipolar or unipolar versions are available

• We offer custom services and accept contract manufacturing. Wanted dealers! !

• Available in single- or double-shaft versions

• Professional drivetrain solution specialist

• Customizations on request

Motor Specifications

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Please click the "Get a quote" button below to tell us your requirements.
